The International® LT® with the S13® Integrated Powertrain leads the on-highway aero category in fuel economy by at least 5%.*
Shift What's Possible
The International® S13® Integrated Powertrain is International's most advanced, fuel-efficient, and streamlined powertrain, available on the LT®, RH™, HX®, and HV™ Series. Capable of up to 515 horsepower and 1,850 lb-ft of torque, the S13 Integrated pairs an engine, transmission, and aftertreatment system that were engineered together from a clean sheet, rather than adapted from an earlier platform. The result is a new standard for efficiency, uptime, and total cost of ownership, proven over more than 4 million miles of real-world and test-track running.

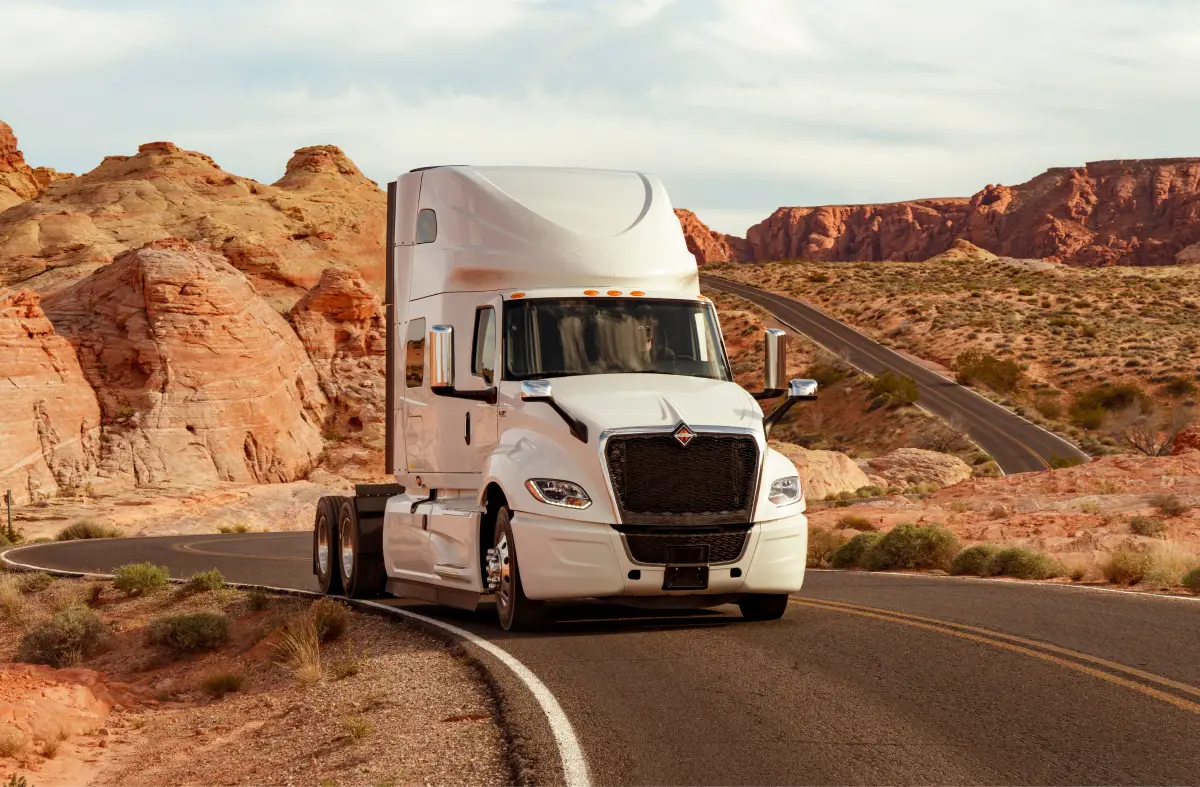

LT® Series

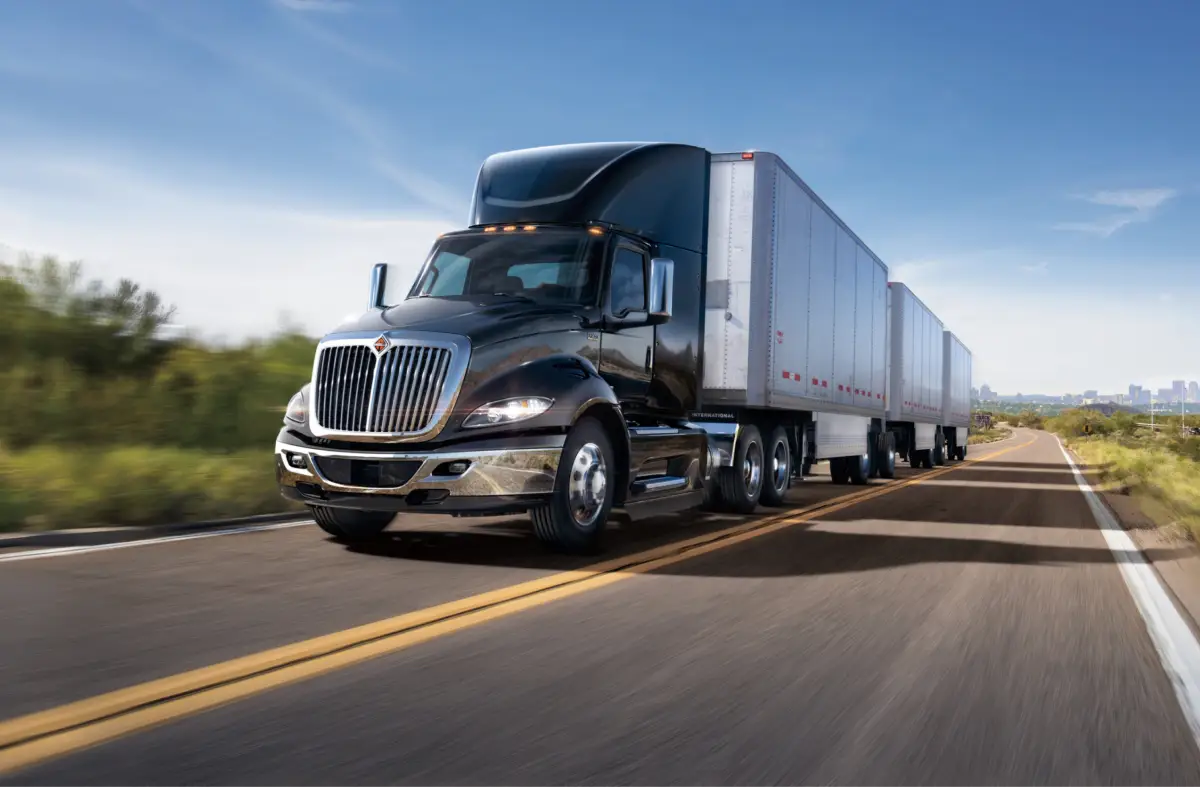

RH™ Series

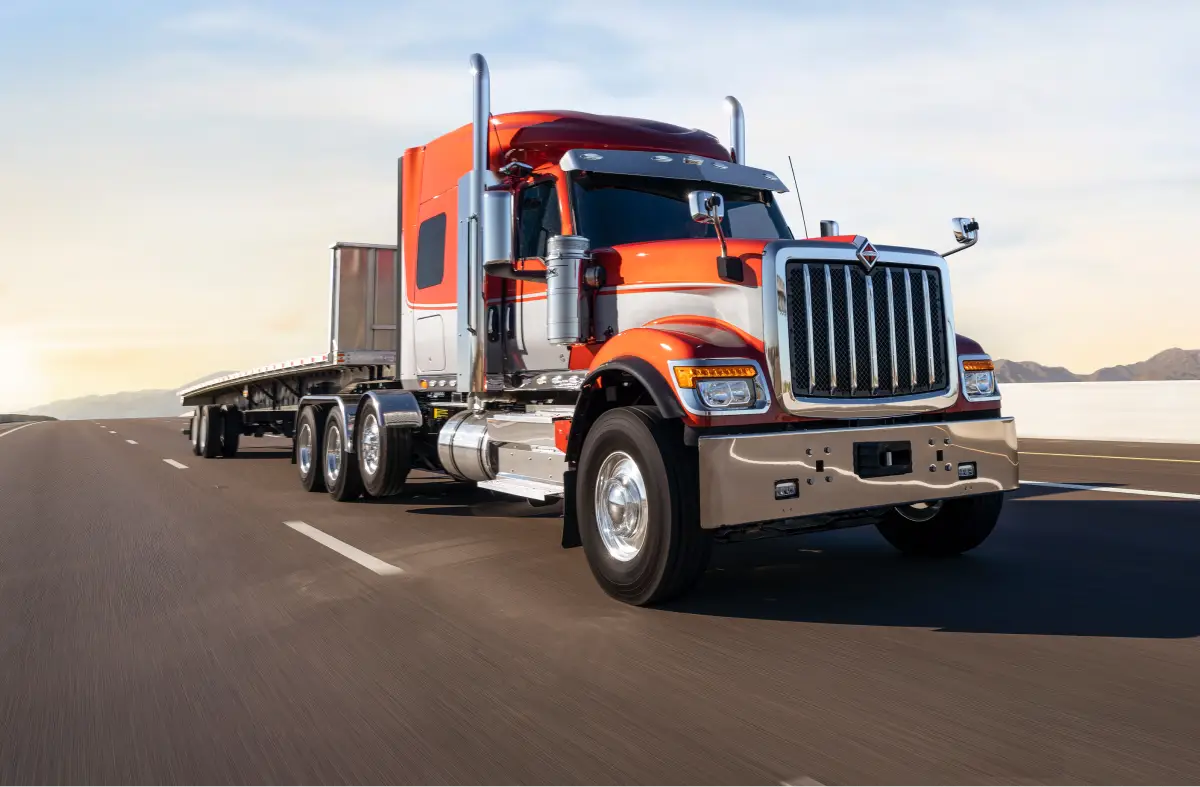

HX® Series

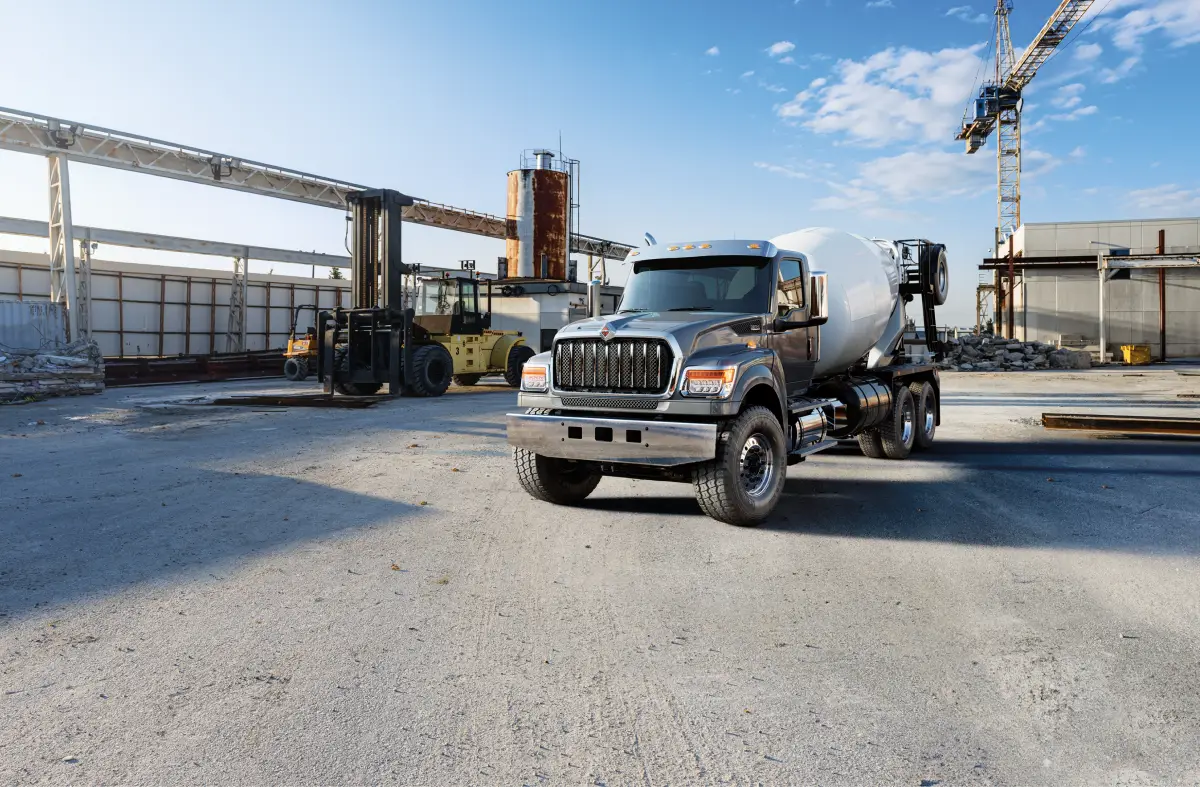

HV™ Series
Three Components. One Integrated System.
Rather than pairing components from different manufacturers, International engineered the S13 Engine, T14 Transmission, and Dual Stage Aftertreatment System together as one unit. That deliberate integration is what gives fleets superior operating economy, stellar performance, and easy serviceability in a single package.

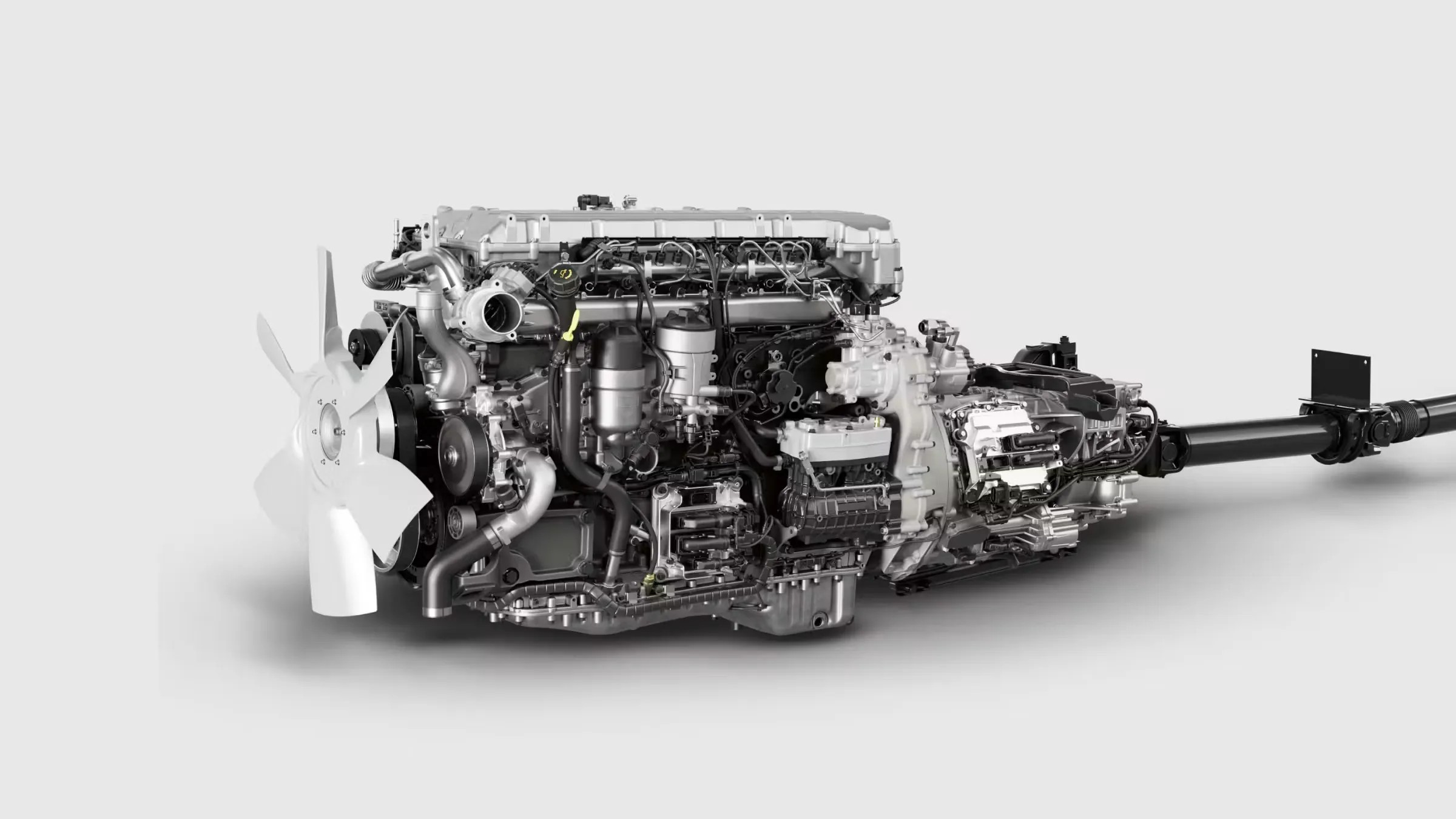

S13® Engine
Delivering Superior Operating Economy
A new cylinder and piston head design with maximum cooling properties, paired with a double overhead cam design, means less fuel burned per mile. The S13 can run at low RPM with high torque, still delivering up to 515 hp and 1,850 lb-ft of torque with a compression ratio of 23:1.

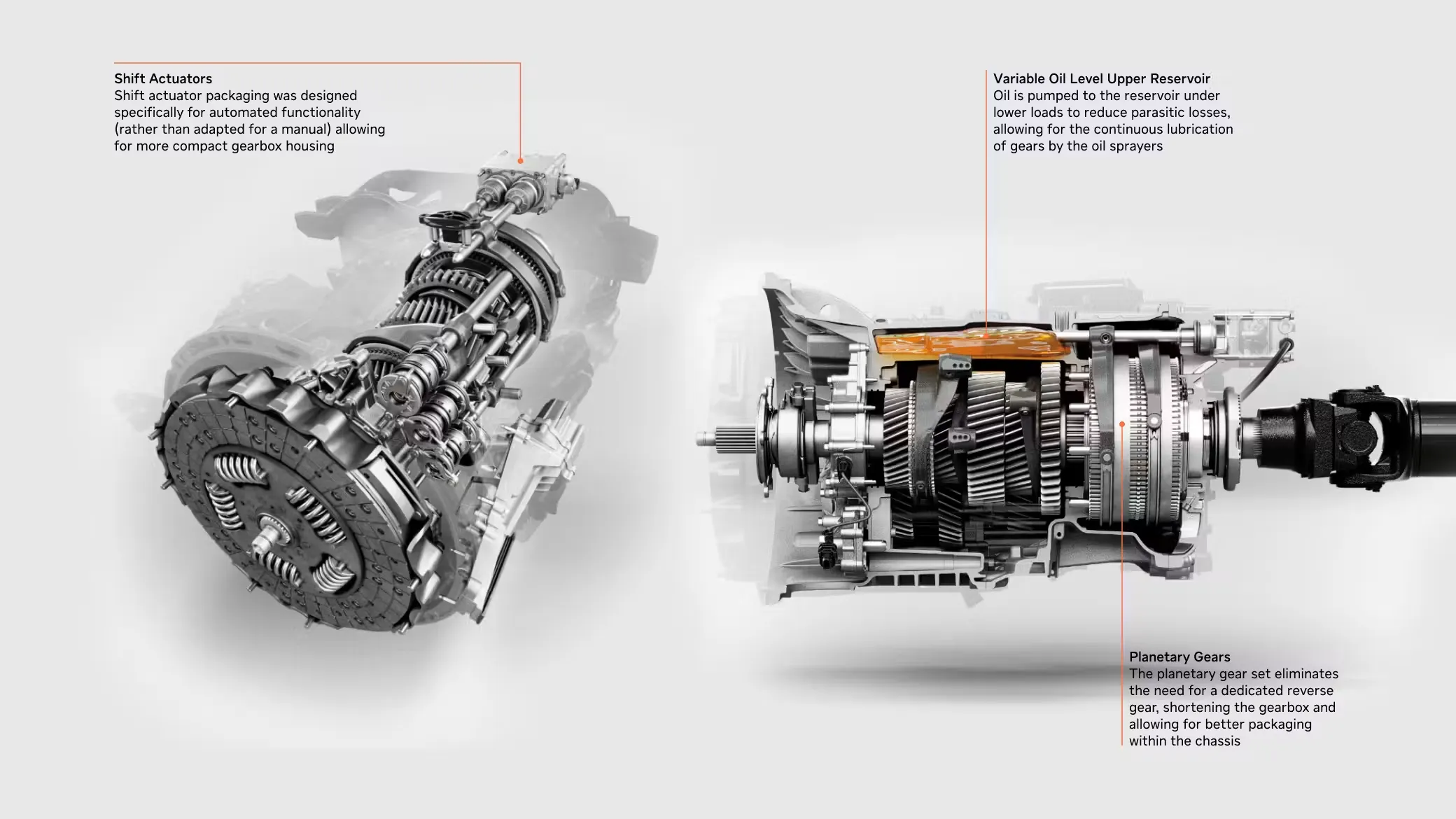

T14® Transmission
Stellar Performance
The fully automated 14-speed T14 transmission was developed alongside the engine, so full torque is available at just 900 RPM. An electronically controlled clutch actuator delivers smooth, driver-free shifts, and a compression release brake provides strong, secure braking on descents.
Dual Stage Aftertreatment
Easy Serviceability
Running with zero cooled EGR during normal operation eliminates the need for a heavy, expensive EGR cooler, so 100% of exhaust flow passes through a simpler, more reliable fixed-vane turbocharger. Less soot means extended service intervals and no active regens required.
S13® Engine at a Glance
- Engine Type: Diesel, 4-Cycle, Inline 6-Cylinder
- Displacement: 12.7L (777 cu. in.)
- Compression Ratio: 23:1
- Horsepower: Up to 515 hp
- Torque: Up to 1,850 lb-ft at 900 RPM
- Valves: 4 valves per cylinder, dual overhead camshaft
- Transmission: T14, 14-speed automated with 2 crawler gears
- B10 Design Life: 1,200,000 miles
See How S13 Stacks Up
Real comparisons, real specs. See how the International S13 Integrated Powertrain stacks up against Freightliner, Kenworth, Volvo, Western Star, Peterbilt, and Mack, truck to truck.
Ready to Experience the S13 Integrated Powertrain?
Whether you're looking to lower fuel costs, extend truck lifespan, or improve driver experience, the S13 Integrated Powertrain delivers. Contact Team Wieland Truck & Trailer to learn more and schedule a demo today.
